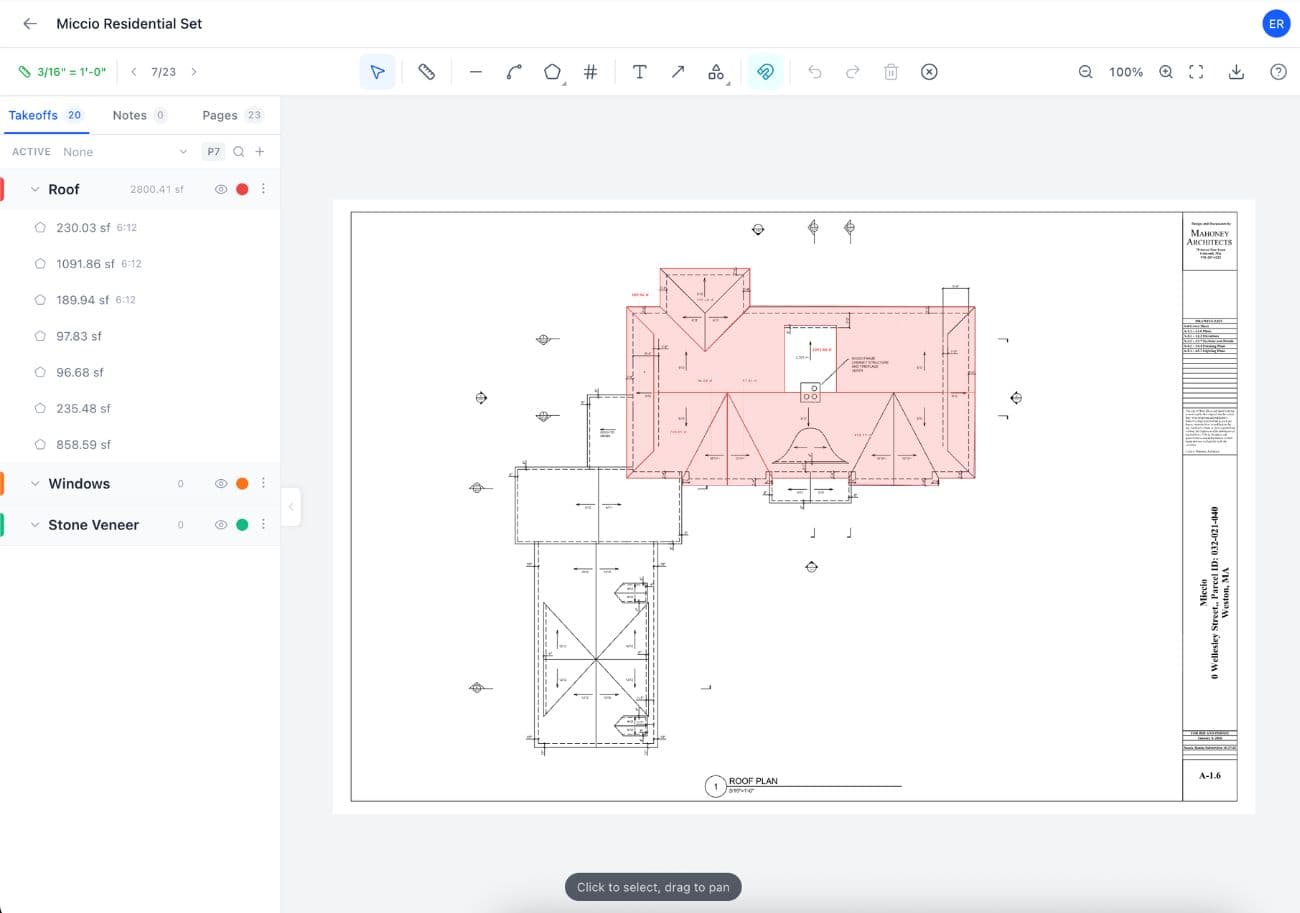

Search Construction Plans
for Text and Symbols
Type a tag, a keynote or a sheet name and find it across the whole set, scanned sheets included. Or box one symbol and the software finds its copies on the page or in the set, for you to review before they become counts.
How to Search a Plan Set
Open Search
Press Ctrl+F (Cmd+F on a Mac) or click Search in the toolbar, and choose All pages or This page.
Type Text or Box a Symbol
Type what you are looking for, such as a door tag or a keynote. For a symbol, switch to Symbol and drag a box around one example on the sheet.
Review the Results
Results are grouped by sheet, and stepping through them shows each one on the drawing. They arrive checked; uncheck the ones that are not what you are counting.
Add the Counts
Add counts turns the checked results into one named count with its own marker, in a new group or one you already have.

Receptacles Found on the Sample Power Plan
The power plan in our sample office set has 32 duplex receptacles, and we wanted them as one count. We dragged a box around one duplex on the north wall of the open office. The sheet is a vector PDF, so the search opened in Vector, which reads the drawing itself, and Rotations was on, so the receptacles drawn a quarter turn on east and west walls were found as well.
It returned 44 matches on the sheet. Besides the 32 duplex receptacles, it found the 7 GFCI receptacles, which use the same symbol with GFI written beside it, the 2 quad receptacles, whose symbol contains the duplex's lines, and the 3 receptacle symbols in the legend. Every match came checked, with a picture. We unchecked those 12, and Add 32 counts made the rest one Duplex receptacle count in the Receptacles group.
The GFCI receptacles are where text search helps. Their symbol cannot tell them apart from a duplex, but their GFI tag can: a text search for GFI listed 8 results on the sheet, the seven tags and the legend line. Text results can be checked and added as counts too. The Count tool page shows the finished receptacle counts.
What Plan Search Does
Text for what is written on the sheets, symbols for what is drawn, and a review before anything becomes a count.
Text Across the Whole Set
Type a door tag, a keynote, a circuit number or a word from the notes. Results are grouped by sheet and highlighted where they sit on the drawing, and Enter and Shift+Enter step through them. Whole word keeps a search for D1 from finding D10.
Sheet Names Come First
Sheets whose names match the search are listed above the text results, so typing power or E2 takes you to the sheet itself. The names come from AI page naming or from your own renames.
Scanned Sheets Read With OCR
A sheet with no text layer, such as a scan, is read with OCR the first time a search reaches it, and the words are kept, so later searches use them at once. Words the OCR is not confident about are left out rather than guessed.
Symbols From One Example
Drag a box around one symbol. Vector reads the drawing and returns exact copies at once on PDFs exported from CAD. Image compares the picture, which also works on scans, and AI checks each possible match before it is listed.
Any Angle, This Page or All
Rotations finds the symbol at any angle, for devices on walls that run different ways. Search the sheet in front of you or the whole set. If the box caught a stray line, Vector offers to exclude it and search again.
Review, Then Add Counts
Uncheck what does not belong, name the count and pick its marker, then add it to a new group or an existing one. In an existing group, locations already counted there are skipped, so a second search does not count them twice.
What Search Leaves to You
Search finds candidates quickly. Deciding which of them are in the scope is still the estimator's call.
Vector Matches Shapes, Not Words
Vector compares drawn lines, not text, so it finds every copy of those lines, including copies inside a larger symbol. For tags that differ only by their text, such as M1 and M2, use Image: on a PDF with real text it reads the label in the box and skips tags that read differently.
Look Before You Add
Results arrive checked, which makes adding them quick and skipping the review easy. Step through them on the sheet, uncheck the legend and anything that is not the item, and compare the total with the schedule before you add it.
OCR Reads What the Scan Shows
Faint, skewed or handwritten text on a poor scan can be missed, and words read with low confidence are dropped. A search that finds nothing on a scan does not prove the word is not on the sheet.
Scans and Image Use the AI Allowance
Reading a scanned sheet and checking Image matches count toward the same AI allowance as page naming. If it runs out partway, the panel says how many scanned pages went unread, or that the symbol search is incomplete, and when the allowance resets.
