PDF Annotation Tool
for Construction Plans

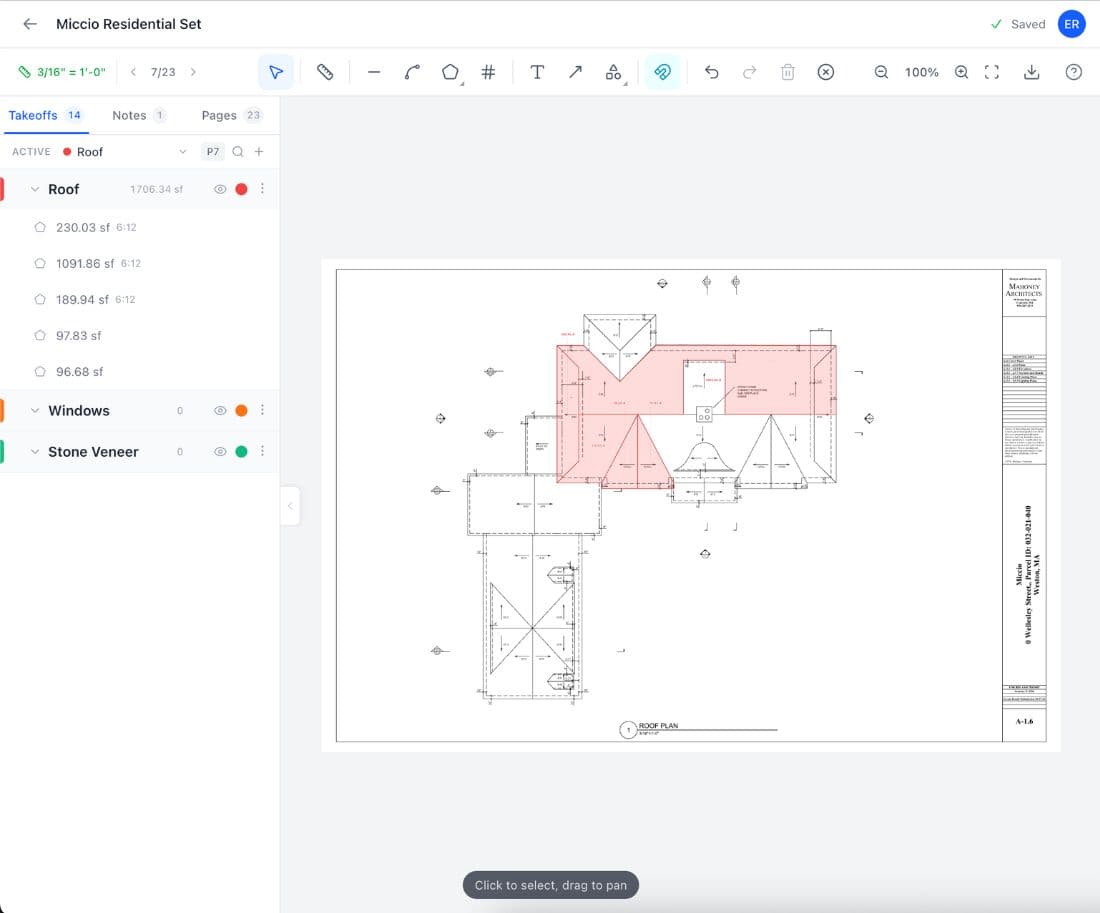

Mark up construction plans with text notes, arrows, revision clouds, stamps, and freehand drawing. Nine colors, four sizes, drag to reposition, and every annotation exports to a flat PDF that opens in any reader. No install, works in your browser.
How to Mark Up PDF Construction Plans
Upload Your Plans
Drop your PDF into the browser. Every page renders at full resolution. Multi page plan sets load just like singles.
Pick an Annotation Tool
Choose from text, arrows, revision clouds, rectangles, ellipses, freehand, highlighter, or stamps. Pick a color and size from the toolbar.
Place Your Markup
Click on the drawing to place the annotation. Drag to reposition. Double-click text to edit in place. Add as many markups across as many pages as you need.
Export or Share
Export an annotated PDF with all your markups on the original plans. Open it in any PDF reader. Every annotation, measurement, and label appears exactly where you placed it.
Why Plan Markup Matters on Every Job
Every construction project communicates through the drawings. When a pipe conflicts with a beam, the sub needs to mark that directly on the plan so the PM, the GC, and the engineer all see the same thing. When field conditions differ from what was designed, a note on the sheet carries more weight than a text message because it is tied to the exact location on the building where the problem exists. Annotations on the actual plans are the fastest way to capture and communicate changes.
A report from the National Institute of Standards and Technology estimated that poor information exchange costs the U.S. construction industry $15.8 billion per year. Contractors and specialty trades bear a significant share of that cost through time lost requesting, verifying, and recreating project information that should already be documented on the plans. Markups placed directly on the construction drawings close that loop. A revision cloud around a changed detail, a stamp marking a sheet as approved, or a text note flagging a field condition gives every person on the project the same information in the same place.
Industry standard contracts like AIA A201 General Conditions require the contractor to maintain a record set of the construction documents showing changes made during construction. Annotations are how that record gets built. The line tool handles dimensions, the area tool handles square footage, and the annotation tools handle everything that needs to be communicated visually on the drawing.
Takeoff Tools Built for Every Trade
From flooring to full ground up builds, our free construction takeoff software handles the measurements your trade demands.
Eight Annotation Tools, One Toolbar
Every markup tool a plan reviewer needs, from quick text notes to formal approval stamps.
Text Notes & Labels
Click anywhere on the plan to place a text annotation. Type your note and it appears directly on the drawing with a white halo that keeps the text readable over any line weight or background color. Double-click to edit existing text in place. Press Shift+Enter for a new line within the same note. Press T to switch to the text tool from any other tool.
Arrows & Callouts
Click a start point and an end point to draw an arrow that points to a specific detail on the plan. Use arrows to direct attention to a problem area, a changed dimension, or a detail that needs clarification in a request for information. The filled arrowhead scales with stroke width so it stays visible at any zoom level. Press W to switch to the arrow tool.
Revision Clouds & Shapes
Draw the scalloped revision cloud that every plan reviewer recognizes. Click one corner and drag to the opposite corner. The cloud renders with the industry standard scalloped edge and a slight variance in the scallop size for a hand-drawn feel. Rectangles and ellipses outline regions with a dashed border. Hold Shift to constrain any shape to a perfect square or circle.
Freehand & Highlighter
Click and drag to sketch directly on the plans. Freehand drawing lets you circle a problem, underline a note, or sketch a quick routing change. The highlighter tool draws with a semi-transparent color that overlays the drawing without hiding the lines beneath it. Both tools render with smooth strokes and round caps for a clean result.
Stamps
Place preset labels with a single click: Approved, Rejected, Revised, For Review, Preliminary, and Void. Each stamp renders as bordered text on the plan at the size and color you choose. Run a submittal review workflow without leaving the drawing. Stamps export to the annotated PDF so the approval status is visible to everyone who opens the file.
Why Marking Up Printed Plans Fails on Real Projects
Red pens, sticky notes, and text messages work until the project gets complicated. Here is what goes wrong.
Red Pen Marks Do Not Survive the Scanner
You redline a set of prints in the field with a red pen. The GC scans them back to the office. Half the marks are washed out, the handwriting is unreadable on screen, and the arrow that pointed to the pipe conflict now points to empty space because the scan was slightly cropped. You get a phone call asking what you meant by the mark on sheet M-3.
Photos and Texts Lose Context Without the Drawing
You send a photo of a beam conflict to the office with a text: "problem near column B4." The PM looks at sheet S-2 and cannot find column B4 because it is on S-3. By the time they figure out which sheet, you have moved on and the phone call takes 15 minutes to reconstruct what you could have shown in seconds with a cloud and an arrow on the actual plan.
Nobody Knows Which Markup Set Is Current
The architect issues revision 3 of the floor plan. Three people mark it up with different notes. Two sets are on paper, one is in an email attachment. The super on site still has revision 2 with notes that were never transferred to the new sheets. The crew builds from the wrong markup because nobody can tell which set goes with which revision.
You Remark Every Revision from Scratch
New drawings arrive and every note, every RFI cloud, every approval stamp from the previous revision has to be recreated on the new sheets by hand. On a 30 sheet set, that is hours of work just to get back to where you were before the revision landed. If you skip a note, someone builds from an unmarked sheet and finds the problem in the field.
PDF Annotation & Markup Questions
Upload your PDF to Easy Takeoffs, select an annotation tool from the toolbar, and click on the drawing to place it. Text notes let you type directly on the plan. Arrows point to specific details. Revision clouds outline areas of change. Stamps mark approval status. Choose from nine colors to keep trades or note types visually separated, and export your marked-up plans to PDF when you are done.
In practice, they mean the same thing. Contractors say markup. Software companies say annotation. Both refer to visual additions placed on top of construction drawings to communicate information: text callouts, arrows, clouds, highlights, and stamps. In Easy Takeoffs, every annotation tool places a markup directly on the plan that you can edit, reposition, and export.
Yes. Easy Takeoffs includes a revision cloud tool that draws the scalloped outline shape used in construction to flag areas of change. Click one corner, drag to the opposite corner, and the cloud renders with the industry standard scalloped edge. Hold Shift to constrain it to a square. Revision clouds export to your annotated PDF alongside your measurements.
Easy Takeoffs offers nine annotation colors: red, blue, green, amber, purple, orange, pink, slate, and black. Each annotation tool remembers the last color you chose, so switching between tools and back does not reset your selection. Use different colors to separate trades, distinguish note types, or match your team markup conventions.
Yes. When you export an annotated PDF from Easy Takeoffs, every annotation renders directly on the original drawing. Text notes, arrows, rectangles, ellipses, revision clouds, freehand marks, highlights, and stamps all appear on the exported file. The exported PDF opens in any standard reader, so anyone on the team can view your markups without needing Easy Takeoffs.
Yes. The stamp tool places preset labels with a single click: Approved, Rejected, Revised, For Review, Preliminary, and Void. Each stamp renders as bordered text on the plan. Choose the stamp type, pick a color and size, and click where you want it placed. Stamps export to your annotated PDF alongside all other markups and measurements.
Open the sheet in Easy Takeoffs, select the revision cloud tool, and draw a cloud around the area in question. Add a text note describing the issue. Use an arrow to point to the specific detail that needs clarification. Export the marked-up PDF and attach it to your request for information. The recipient sees exactly which area of the drawing the question refers to, with your notes drawn directly on the plan.
A redline drawing is a construction plan marked up with changes, corrections, or field conditions that differ from the original design. Traditionally done with a red pen on printed plans, redlining now happens digitally. In Easy Takeoffs, you redline drawings using any of the nine annotation colors. Text notes describe the change, arrows point to modified areas, revision clouds outline affected zones, and the marked-up PDF exports to the project team.
